E015 gas monitoring
DE EN
LabWatch 165
is a Web LIOB-580V2 modul from Loytec.

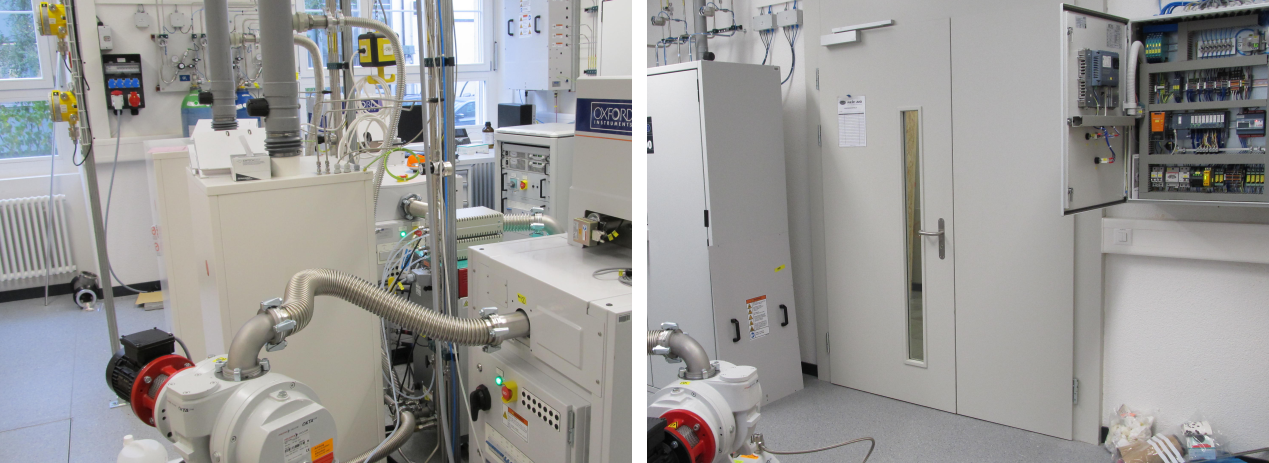

The module is integrated in the "INTEGA" electronic cabinet.
Room: E015 / CVD Lab
Adress: 10.34.108.165
Name: http://phys-alarm-25.physik.p.unibas.ch
LWEB-165:
| Warning: | Pressure warning, Gas supply failure, Endpoint detected |
| Email to | Gerard Gadea, Milo Yaro Swinkels, Laurent Marot, On-call duty (Pikettdienst) |
| Alarm: | SiH4- GeH4-, H2-, NH3- Gas alarm and pressure alarm |
| Email to | Gerard Gadea, Milo Yaro Swinkels, Laurent Marot, On-call duty (Pikettdienst) |
| SMS to | Gerard Gadea, Milo Yaro Swinkels, Laurent Marot, HW+Stv, On-call duty (Pikettdienst) |
This module is monitoring if any gas cylinder or scrubber cylinder in lab E0.15 needs to be changed (WARNING level) or if there is a danger situation within lab E0.15 (ALARM level).
Warning Level
In case of low pressure/weight in one of the gases or one of the scrubber cylinders needs to be changed soon! (5% remaining!) a warning-message is sent to techalarm-phys@unibas.ch by email. From this email account the email is forwarded to the responsible staff per email or/and SMS.
In case of low pressure/weight in one of the gases or one of the scrubber cylinders needs to be changed soon! (5% remaining!) a warning-message is sent to techalarm-phys@unibas.ch by email. From this email account the email is forwarded to the responsible staff per email or/and SMS.
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Warning / E015 Pressure |
| Pressure warning in room E015 Druckwarnung im Raum E015 {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 Pressure Warning |
| Pressure warning cleared in room E015 {timestamp} |
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Failure / E015 Gas supply |
| Gas supply failure in room E015. Gasversorgungsausfall. {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 Gas supply |
| Gas supply failure cleared in room E015 {timestamp} |
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Endpoint / E015 detected |
| Endpoint detected in room E015 Endpunkt detektiert im Raum E015 {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 Endpoint detected |
| Endpoint detected cleared in room E015 {timestamp} |
Alarm Level
In case of alarm a sensor detected SiH4 or GeH4 or H2 or NH3 gas or one of the scrubber barrels in in overpressure (which means also the scrubber is BYPASSED!). ALARM situation trigger also the alarm in the corridor (red light + loud beep)
A alarm message is sent to techalarm-phys@unibas.ch by email. From this email account, the email is forwarded to the responsible staff per email and SMS.
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Alarm / E015 GeH4 / SiH4 GasAlarm |
| GeH4 / SiH4 GasAlarm in room E015 Germanium hydrogen is highly toxic! Silane is highly flammable! Germaniumwasserstoff ist hochgiftig! Siliziumwasserstoff ist leichtentzündlich! {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 GeH4 / SiH4 GasAlarm |
| Alarm cleared in room E015 {timestamp} |
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Alarm / E015 H2 GasAlarm |
|
H2 GasAlarm in Room E015
Hydrogen is explosive over 4% room concentration! Wasserstoff ist ab 4% Raumkonzentration explosiv! More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 H2 GasAlarm |
|
Alarm Cleared in Room E015
{timestamp} |
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Alarm / E015 NH3 GasAlarm |
| NH3 GasAlarm in Room E015 Ammonia is poisonous and corrosive to mucous membranes and lungs! Amonniak ist gifitg und ätzend auf Schleimhäute und Lunge! {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
|
| Alarm Clear Subject : | Cleared / E015 NH3 GasAlarm |
| Alarm cleared in Room E015 {timestamp} |
| Sender: | LabWatch-165 / Room E015 |
| Subject : | Pressure Alarm / E015 |
| Pressure Alarm in room E015 Druckalarm im Raum E015 {timestamp} More information: https://labwatch.physik.unibas.ch/labwatch/165 |
Alarm:
- GeH4-/SiH4-GasAlarm
- H2-GasAlarm
- NH3-GasAlarm
- Pressure Alarm
Warning
- Gas supply failure
- Pressure warning
